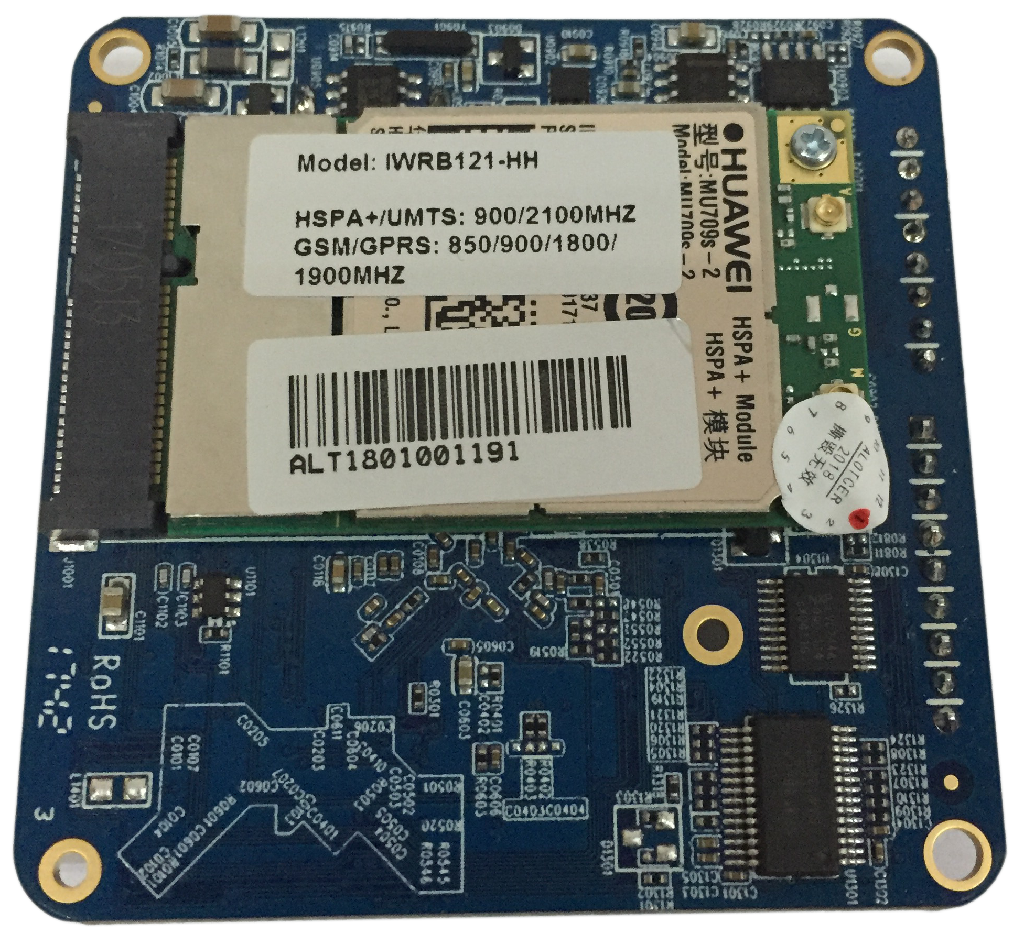

IWRB122 INDUSTRIAL CELLULAR ROUTER BOARD
IWRB122 ROUTER BOARD is akind of terminal device that developed based on 2G/3G/4G, VPN technology. It adoptshigh-powered industrial 32-bits CPU and embedded real time operating system. Itsupports RS232 (or RS485), Ethernet port that can conveniently andtransparently connect one device to a cellular network, allowing connect toyour existing serial, Ethernet devices with only simple configuration.
The product adopts PCBA board form with common industrial interface, it is designedto facilitate user embed it into own host machine, It has been widely used onM2M fields, such as intelligent transportation, smart grid, postal services, industrialautomation, telemetry, finance, POS, water supply, environment protection, Post,weather, and so on.
Key Feature
Standard and Convenience
○ Support dual SIM backup.
○ Support standard RS232(or RS485), Ethernet port that can connect to serial, Ethernet devices directly .
○ Support firmware upgrade via serial port
○ Enter into communication state automatically when power on.
○ Support several router work modes
○ Convenient configuration and maintenance interface（WEB or CLI）
Industrial grade design
○ High-powered industrial cellular module
○ High-powered industrial 32bits CPU
○ Power range: DC 5~60V
Stable and reliable
○ Software and hardware watchdog
○ Auto recovery mechanism to make router always online
○ Ethernet port support 1.5KV magnetic isolation protection
○ RS232/RS485 port support 15KV ESD protection
○ SIM/UIM port support 15KV ESD protection
○ Power port support reverse-voltage and over voltage protection
○ Antenna port support lightning protection (optional)
○ 10MB cache, ensure the safety of data and is not lost.
High-performance and Security
○ Support TCP server, double data centers, multi data centers and it can support 5 data centers at the same time
○ Support ModBus RTU/TCP protocol conversion
○ Support electric power 101,104 portocol and protocol concersion.
○ Support standard TCP/UDP, support data transparent transmission.
○ Support VPN PPTP, L2TP client, IPSec and GRE
○ Support remote management, SYSLOG, SNMP, TELNET, SSH, HTTPS, etc.
○ Support local and remote firmware upgrade, import and export configure file. Support local log storage
○ Support NTP, RTC, MAC address cloning, APN/VPDN.
○ Support multiple online trigger ways, including SMS, ring and data. Support link disconnection when timeout.
○ Support multiple DHCP server and DHCP client, DHCP binding MAC address, DDNS, Firewall, NAT, DMZ host, QoS, traffic statistics, real-time display data transfer rate etc.
○ Support TCP/IP, UDP, FTP(optional), HTTP, etc.
○ Supports SPI firewall, VPN pass-through, access control, URL filtering etc.
Specification
Hardware System
CPU | Industrial 32bits CPU |
FLASH | 16MB (Extendable to 64MB) |
SDRAM | 128MB |
Interface
LAN | 1x10/100Mbps LAN ports(8Pin 2.0mm PH connector), auto MDI/MDIX, 1.5KV magnetic isolation protection |
Serial | 2xRS232(or 1xRS232 and 1xRS485) port(9Pin 2.54mm connector) , 15KV ESD protection Data bits: 5, 6 ,7, 8 Stop bits: 1, 1.5(optional), 2 Parity: none, even, odd Baud rate: 2400~115200 bps, default 115200bps Support 10MB data cache |
Antenna | Cellular: IPEX connector , 50 ohm( need connect to M or Main IPEX port of cellular module) |
SIM/UIM | 2xStandard 3V/1.8V user card interface, 15KV ESD protection |
Power | 9Pin 2.54mm connector, reverse-voltage and over voltage protection |
Reset | Press this key for 8 seconds to restore the router to its original factory default settings |
Indicator | Support the status of power, SIM card, operating and network indicate. |

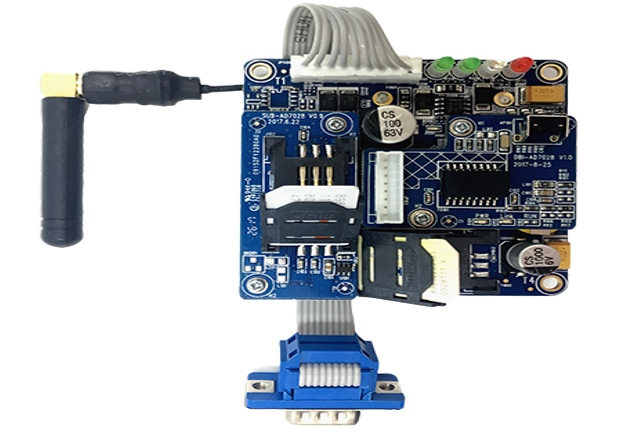

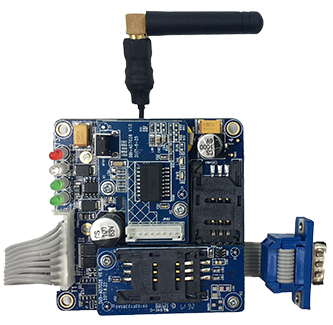

Front panel : Rear panel:
| |
Network
Power supply
Standard Power | DC 12V/1.5A |
Power range | DC 5~60V |
Consumption | Communication:<410mA (@12VDC) Standby: <250mA (@12VDC) |
Environmental Limits
Operating Temperature | -35~+75ºC(-31~+167℉) |
Storage Temperature | -40~+85ºC(-40~+185℉) |
Operating Humidity | 95% ( unfreezing) |
Physical

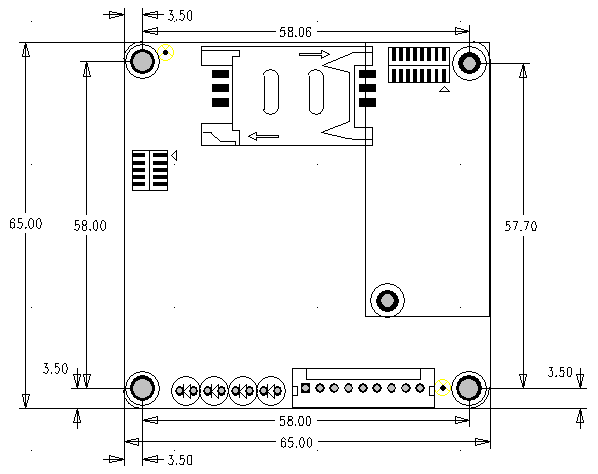

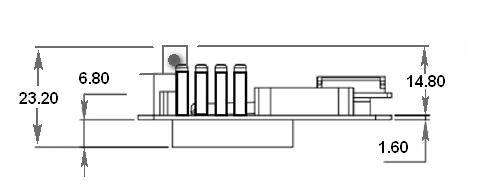

Dimensions | 65x65x23.2mm (exclude antenna) |
Net Weight | |
| |
