IWR511 4G/5G Industrial Router
IWR511 INDUSTRIAL CELLULAR ROUTER
IWR511 ROUTER is a kind of terminal device that developed based on 2G/3G/4G, WIFI, VPN technology. It adopts high-powered industrial 32-bits CPU and embedded real time operating system. It supports RS232 (or RS485), Ethernet and WIFI port that can conveniently and transparently connect one device to a cellular network, allowing to connect to your existing serial, Ethernet and WIFI devices with only simple configuration.
It has been widely used on M2M fields, such as intelligent transportation, smart grid, postal services, industrial automation, telemetry, finance, POS, water supply, environment protection, Post, weather, and so on.
Key feature
Industrial grade design
○ High-powered industrial cellular module
○ High-powered industrial 32bits CPU
○ Iron housing providing IP30 protection.
○ Power range: DC 5~35V
Standard and Convenience
○ Support standard RS232(or RS485), Ethernet and WIFI port that can connect to serial, Ethernet and WIFI devices directly (Wi-Fi feature is optional).
○ Support standard WAN port and PPPOE protocol that can connect to ADSL directly
○ Enter into communication state automatically when power on.
○ Support several router work modes
○ Convenient configuration and maintenance interface（WEB or CLI）
Stable and reliable
○ Software and hardware watchdog
○ Auto recovery mechanism to make router always online
○ Ethernet port support 1.5KV magnetic isolation protection
○ RS232/RS485 port support 15KV ESD protection
○ SIM/UIM port support 15KV ESD protection
○ Power port support reverse-voltage and over voltage protection
○ Antenna port support lightning protection (optional)
High-performance and Security
○ Support multiple WAN access methods, including static IP, DHCP, PPPOE, 2.5G/3G/4G.
○ Support double link backup between 2.5G/3G/4G and WAN.
○ Support VPN PPTP, L2TP client, IPSec and GRE
○ Support remote management, SYSLOG, SNMP, TELNET, SSH, HTTPS, etc.
○ Support local and remote firmware upgrade, import and export configure file. Support local log storage
○ Support NTP, RTC, MAC address cloning, APN/VPDN.
○ Support WIFI 802.11b/g/n, AP or client.
○ Support multiple online trigger ways, including SMS, ring and data. Support link disconnection when timeout.
○ Support multiple DHCP server client, DHCP binding MAC address, DDNS, Firewall, NAT, DMZ host, QoS, traffic statistics, real-time display data transfer rate etc.
○ Support TCP/IP, UDP, FTP(optional), HTTP, etc.
○ Supports SPI firewall, VPN pass-through, access control, URL filtering etc.
○ Support GPS (Optional)
Specification
Hardware System
CPU | Industrial 32bits CPU |
FLASH | 16MB (Extendable to 64MB) |
SDRAM | 128MB |
Interface
WAN | 1x10/100Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
LAN | 4x10/100Mbps LAN ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
Serial | 1xRS232(or RS485/RS422) port, 15KV ESD protection Data bits: 5, 6 ,7, 8 Stop bits: 1, 1.5(optional), 2 Parity: none, even, odd, space(optional), mark(optional) Baud rate: 2400~115200 bps |
Antenna | Cellular: Standard SMA female interface, 50 ohm WIFI: Standard SMA male interface, 50 ohm GPS(optional):Standard SMA female interface, 50 ohm |
SIM/UIM | 1xStandard 3V/1.8V user card interface, 15KV ESD protection |
Power | Standard 3-PIN power jack, reverse-voltage and over voltage protection |
Reset | Press this key for 8 seconds to restore the router to its original factory default settings |
Indicator | "Signal strength"、"PWR"、"RUN"、"SIM1"、"Online"、"LAN1"、"LAN2"、"LAN3" 、"LAN4"、 “WAN"、"WIFI"、"GPS"(optional) |

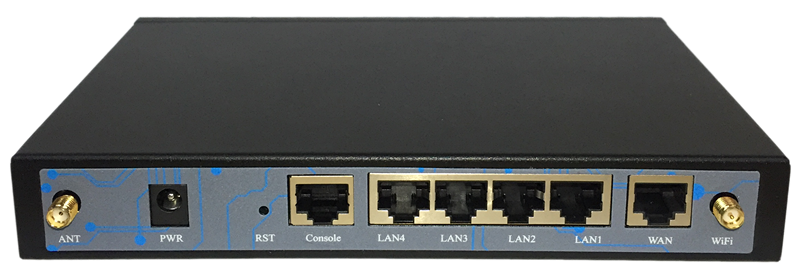

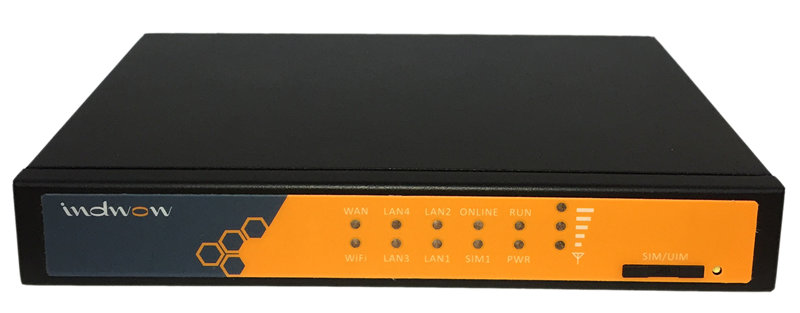

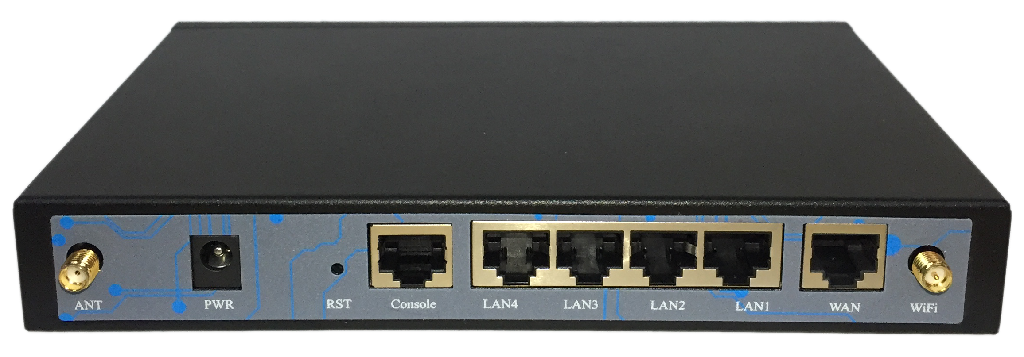

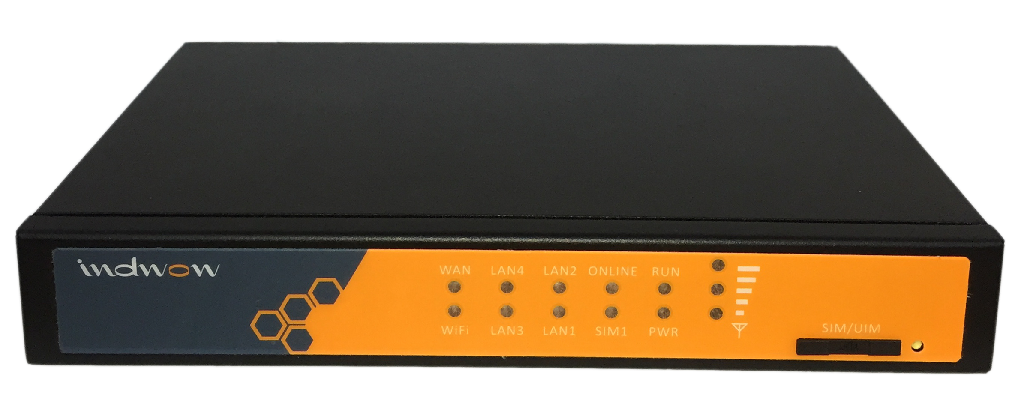

Front panel: Rear panel:
| |
Network
WIFI
Standard | IEEE802.11b/g/n |
Bandwidth | IEEE802.11b/g: 54Mbps (max) IEEE802.11n: 150Mbps (max) |
Security | WEP, WPA, WPA2, etc. WPS (optional) |
GPS (optional)
Receiver Type | 50-channle GPS L1（1575.42MHz）C/A code SBAS: WAAS,EGNOS,MSAS,GAGAN |
Max. update rate | 5 Hz |
Accuracy | Position: 2.5m CPE SBAS: 2.0m CPE |
Acquisition | Cold starts: 32S Warm starts: 32S Aided starts: <1S Hot starts: <3S |
Sensitivity | Tracking: -160dBm Reacquisition: -160dBm Cold starts: -146dBm |
Timing accuracy | RMS: 30ns 99%: <60ns Granularity: 21ns |
Power supply
Standard Power | DC 12V/1.5A |
Power range | DC 5~35V |
Consumption | <450mA (@12VDC) |
Physical
Dimensions | 186.8x120.2x28mm (exclude antenna) |
Net Weight |
Environmental Limits
Operating Temperature | -35~+75ºC(-31~+167℉) |
Storage Temperature | -40~+85ºC(-40~+185℉) |
Operating Humidity | 95% ( unfreezing) |
