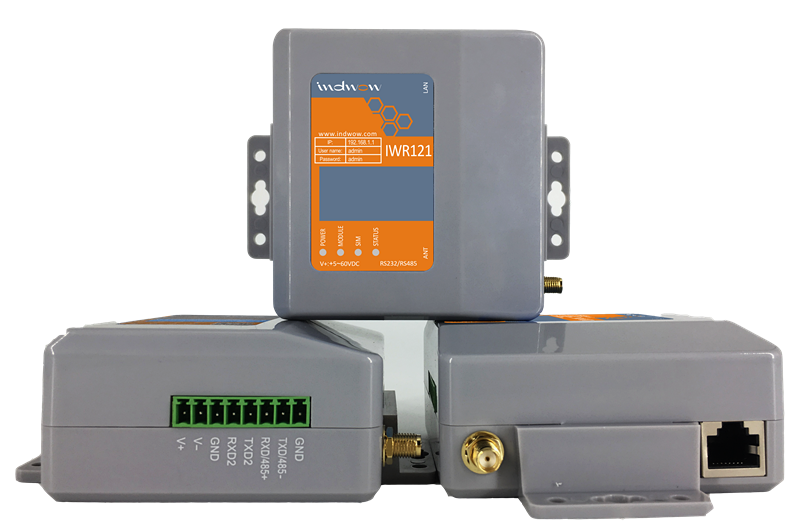

IWR121 INDUSTRIAL CELLULAR ROUTER
IWR121 ROUTER is a kind of terminal device that developed based on 2G/3G/4G, VPN technology. It adopts high-powered industrial 32-bits CPU and embedded real-time operating system. It supports two independent serial ports(2xRS232 or1xRS232+1xRS485), Ethernet port that can conveniently and transparently connect one device to a cellular network, allowing connect to your existing serial, Ethernet devices with only simple configuration.
The product has been widely used on M2M fields, such as intelligent transportation, smart grid, postal services, industrial automation, telemetry, finance, POS, water supply, environment protection, Post, weather, and so on.
Key Feature
Industrial grade design
○ High-powered industrial cellular module
○ High-powered industrial 32bits CPU
○ Wide power supply voltage and operating temperature range.
Stable and reliable
○ Software and hardware watchdog
○ Auto recovery mechanism to make router always online
○ Ethernet port support 1.5KV magnetic isolation protection
○ RS232/RS485 port support 15KV ESD protection
○ SIM/UIM port support 15KV ESD protection
○ Power port support reverse-voltage and over voltage protection
○ Antenna port support lightning protection(optional)
○ 10MB cache, ensure the safety of data and is not lost.
Standard and Convenience
○Support standard RS232(or RS485), Ethernetport that can connect to user’s serial, Ethernet devices directly .
○Support firmware upgrade via serial port or LAN
○ Enter intocommunication state automatically when power on.
○Support several router work modes
○Convenient configuration and maintenance interface（WEB or CLI）
High-performanceand Security
○ Support TCP server, maximum 5 data center communication at the same time
○ Support ModBus RTU/TCP protocol conversion
○ Support electric power 101,104 protocol and protocol conversion.
○ Support standard TCP/UDP, support data transparent transmission.
○ Support VPN PPTP, L2TP client, IPSec and GRE
○ Support remote management, SYSLOG, SNMP,TELNET, SSH, HTTPS, SMS configure etc.
○ Support local and remote firmware upgrade,import and export configure file.Support local log storage
○ Support NTP, RTC, MAC address cloning, APN/VPDN.
○ Support multiple online trigger ways, including SMS, ring and data. Support link disconnection when timeout.
○ Support multiple DHCP server and DHCP client, DHCP binding MAC address, DDNS, Firewall, NAT, DMZ host, QoS, VRRP, traffic statistics, real-time display data transfer rate etc.
○ Support TCP/IP, UDP, FTP(optional), HTTP, etc.
○ Supports SPI firewall, VPN pass-through, access control, URL filtering etc.

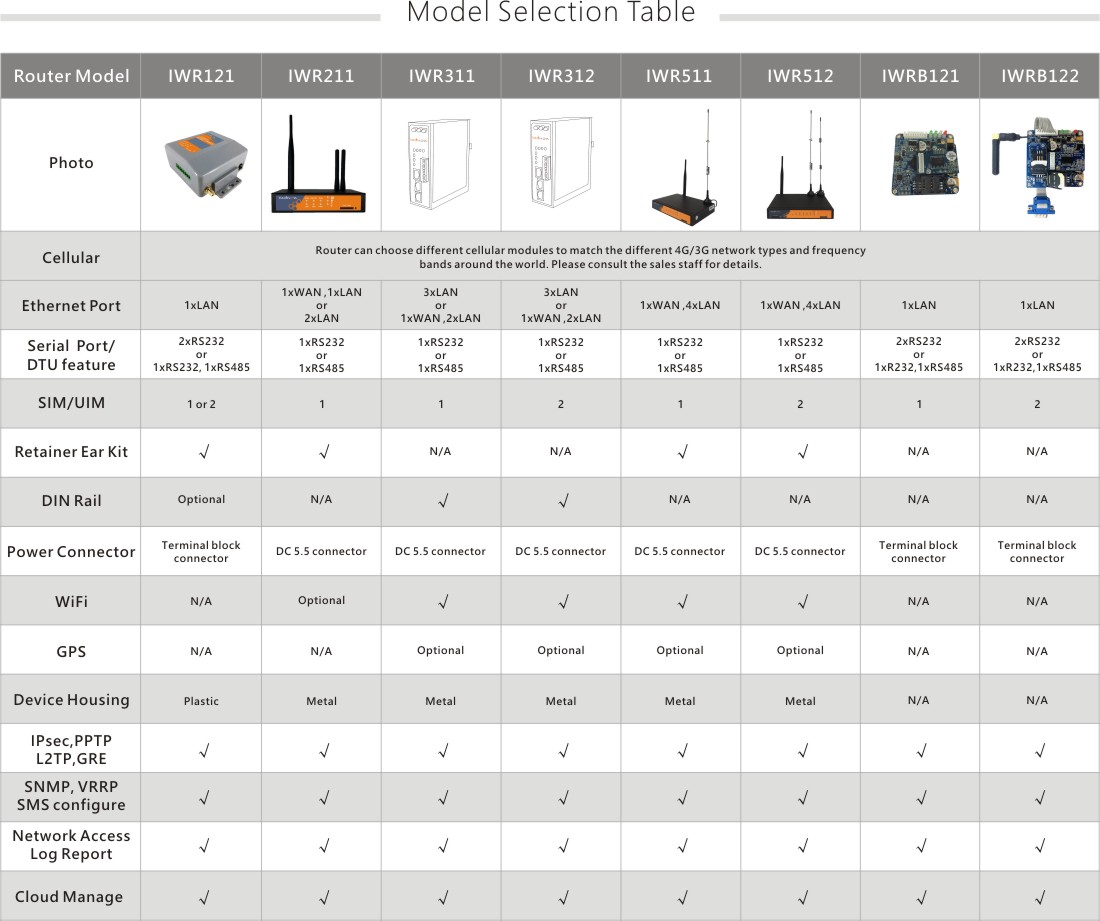

Specification
Hardware System
CPU | Industrial 32bits CPU |
FLASH | 16MB (Extendable to 64MB) |
SDRAM | 128MB |
Interface

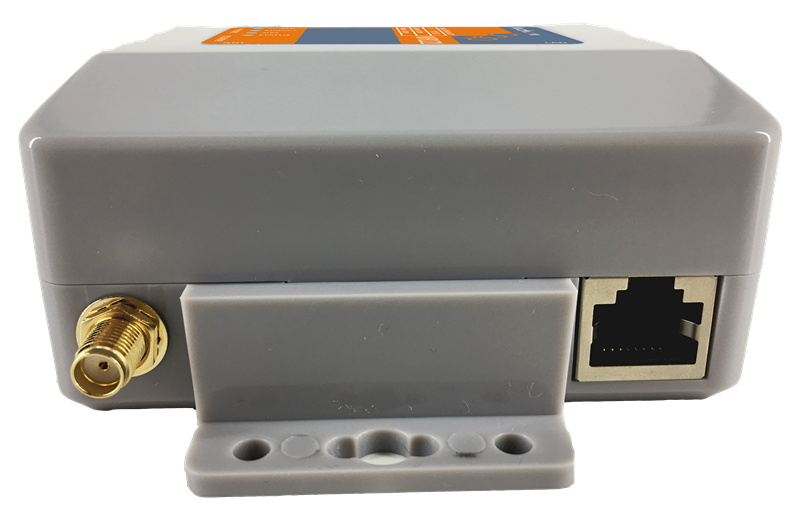

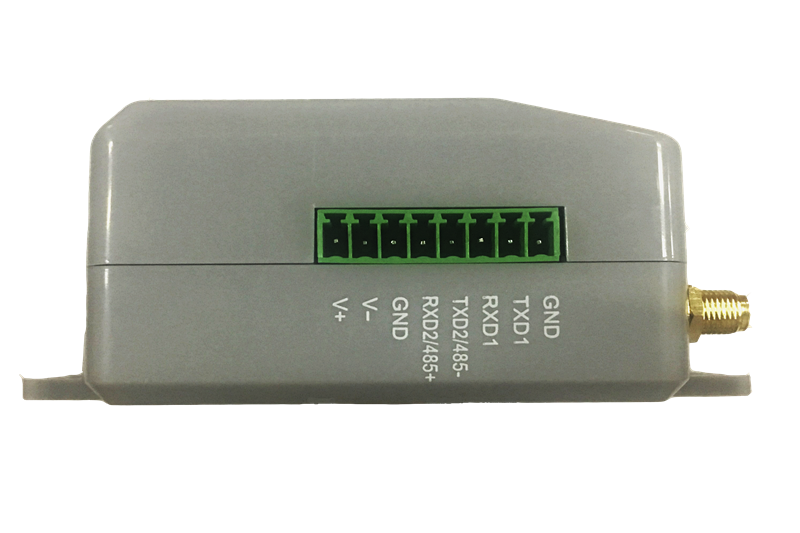

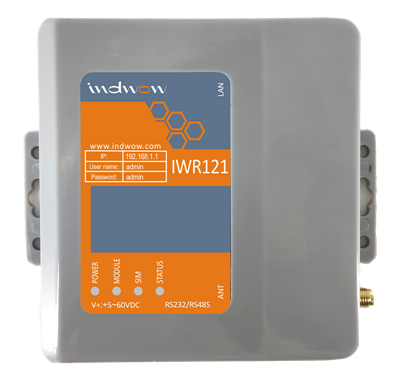

LAN | 1x10/100Mbps LAN ports, auto MDI/MDIX, 1.5KV magnetic isolation protection |
Serial | Industrial 3.81mm 8PIN connector, 15KV ESD protection Serial port 1: RS232 or RS485 are optional Serial port 2: RS232 Data bits: 5, 6 ,7, 8 Stop bits: 1, 1.5(optional), 2 Parity: none, even, odd Baud rate: 2400~115200 bps, default 115200bps Support 10MB data cache |
Antenna | SMA female connector, 50 ohm |
SIM/UIM | 1xStandard 3V/1.8V SIM/UIM interface, 15KV ESD protection |
Power | Industrial 3.81mm PIN connector, reverse-voltage and over voltage protection |
Reset | The button is inside the device, press it for 8 seconds to restore the routerparameters to its original factory default settings |
Indicator | POWER, MODULE, SIM, STATUS 4 LED indicate. |
Network
Cellular Network | Can choose different embedded cellular module to suit all cellular network worldwide which have different network type and frequency band, typical network type include FDD-LTE,TDD-LTE, TD-SCDMA, WCDMA/HSPA/HSPA+, CDMA2000 1x/EVDO, CDMA, EDGE/GPRS, please consult sales for specific project. |
PPP Protocol | Support PPP Protocol |
PPP Heartbeat | Maintaining links with the cellular network to prevent forced sleep, to ensure the stability of dial-up link. |
TCP Heartbeat | Monitor the server connection |
Network Authentication | Support CHAP/PAP Authentication |
Network Access | Support APN/VPDN |
IP Applications | Support Ping,Trace, DHCPServer, DHCP Relay, DHCP Client, DNS relay, DDNS, Telnet |
IP Routing | Support static routing |
Power supply
Power supply range | DC 5~60V, typical power 12V/1.5A |
Consumption | Communication:<410mA (@12VDC) Standby: <250mA (@12VDC) |
Environmental Limits
Operating Temperature | -35~+75ºC(-31~+167℉) |
Storage Temperature | -40~+85ºC(-40~+185℉) |
Operating Humidity | 95% ( unfreezing) |
Physical
Shell | ABS engineering plastic |

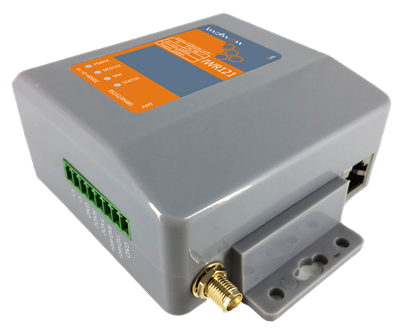

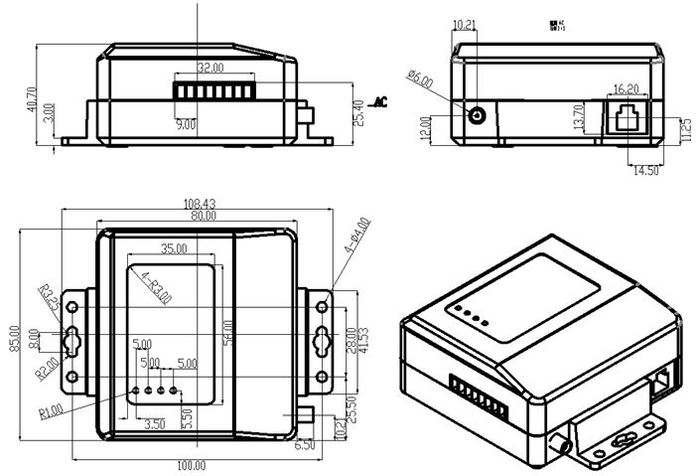

Dimensions | 108.43x85x40.7mm (exclude accessories) |
Net Weight | 126g (exclude accessories) |
Installation method | Default fixed ear, 35mm DIN rail is optional |
| |
